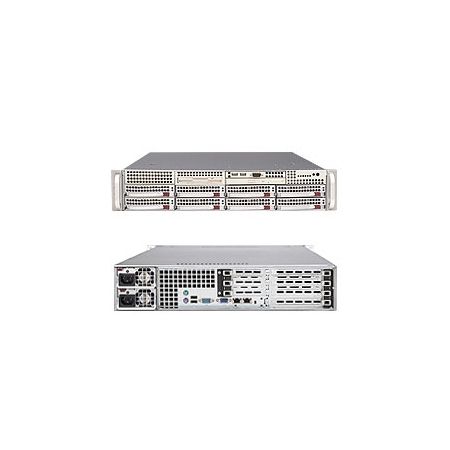

Supermicro SuperServer 6025B-URB Barebone System Item # 151269
Share
-
Email This Page
- Note: You can share Individual Items, entire Shopping Carts, and Shopping Lists.
-
Share this Item
Close
Print
151269
was removed.
Thank you, you will now be redirected to comparisons.
Just a moment while we prepare the page
Check In-Store Availability
Description
The SuperServer 6025B-UR is a high-end server comprised of two main subsystems: the SC825TQ-R700U 2U server chassis and the X7DBU dual Intel Xeon processor server board.At the heart of the SuperServer 6025B-UR lays the X7DBU, a dual processor server board based on the Intel 5000P chipset and designed to provide maximum performance.
Product Details
| Item # | 151269 |
| Manufacturer # | 60024 |
| Ethernet Technology | Gigabit Ethernet |
| RAID Levels | 0, 1, 5, 10 |
| Processor Supported | Xeon |
| height | 3.5 in |
| Additional Information | Hard Drive(s) Detail:Supports up to 6 SATA Hard Drives using integrated controller |
| Total Number of USB Ports | 2 |
| Optical Media Supported | DVD-ROM |
| Number of PCI Express x4 Slots | 2 |
| Graphics Controller Manufacturer | ATI |
| Optical Drive Type | DVD-Reader |
| width | 16.8 in |
| Product Line | SuperServer |
| package contents | SuperServer 6025B-URB Barebone System; 1 x Super X7DBU Motherboard; 1 x 2U Black Chassis; 1 x 2U Air Shroud; 1 x SAS / SATA Backplane; 1 x 6" 16-pin Front Control Split Cable; 1 x 20" Round 16-pin to 16-pin Ribbon Cable; 1 x 50cm 80-Wire IDE (DVD-ROM) Cable; 2 x Power Cord; 2 x 64cm IPASS(SFF-8087) to 4 SATA Straight w/Sideband Cable; 1 x 45cm Round Floppy Cable; 1 x Driver CD; 8 x Black Hot-swappable Hard Drive Tray; 1 x Black USB Assembly Tray; 1 x Black Floppy Drive Tray Front Cover |
| Graphics Memory Capacity | 16 MB |
| depth | 25.5 in |
| Product Name | SuperServer 6025B-URB Barebone System |
| Rack Height | 2U |
| manufacturer | Supermicro Computer, Inc |
| Front Side Bus | 1333 MHz; 1066 MHz; 667 MHz |
| Number of 3.5" Bays | 8 |
| VGA | Yes |
| weight | 55 lb |
| RAID Supported | Yes |
| brand name | Supermicro |
| Number of Processors Supported | 2 |
| Maximum Memory | 32 GB |
| Number of Total Memory Slots | 8 |
| controller type | Ultra ATA/100 (ATA-6); Serial ATA/300 |
| Input Voltage | 110 V AC; 220 V AC |
| Network (RJ-45) | Yes |
| Number of USB 2.0 Ports | 2 |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Memory Standard | DDR2-667 |
| Power Factor Correction | Yes |
| Number of Power Supplies Installed | 2 |
| Number of Total Expansion Slots | 7 |
| Processor Socket | Socket J LGA-771 |
| Chipset Model | 5000P |
| Number of Total Expansion Bays | 8 |
| Chipset Manufacturer | Intel |
| Graphics Controller Model | ES1000 |
| form factor | Rack-mountable |
| Memory Technology | DDR2 SDRAM |
| color | black |
| warranty length | 3-year limited |
| model name | 6025B-URB |
| Number of PCI Slots | 1 |
| Number of PCI Express x8 Slots | 3 |
| Number of PCI-X Slots | 1 |
| Show More ▾ |
